Automatic CCD Vision Inspection Machine for Cylindrical Battery Polarity Detection
Product Overview
The ACEY-CCD01C Automatic CCD Vision Inspection Machine is engineered to automatically inspect the polarity and orientation of cylindrical lithium battery cells prior to spot welding and battery pack assembly. Utilizing industrial-grade CCD camera technology and intelligent image processing, the system precisely identifies positive and negative terminals to prevent reverse polarity assembly and enhance production safety.
The machine automatically captures battery images, compares them against preset standards, and delivers OK or NG results within one second. Defective batteries can be automatically marked or rejected, significantly reducing manual inspection while improving consistency and production efficiency.
Process Flow
- Cell enters detection area
- Sampling scan
- Positive and negative detection
- NG automatic detection
- OK output
Key Advantages
- Eliminates manual polarity inspection
- Reduces reverse polarity defects
- Improves spot welding quality
- Increases production efficiency
- Stable industrial camera imaging
- High repeatability
- Supports customized battery fixtures
- Easy integration with automatic production lines
Technical Specifications
| XY Axis Stroke |
1200*500 (customizable) Effective working travel: 400*300mm |
| Motor Transmission Speed |
300mm/S |
| Operating System |
Industrial computer + smart camera |
| Detection Method |
Assembly line style |
| Repeated Positioning Accuracy |
±0.1mm |
| Detection Efficiency |
1 second/PCS |
| Machine Power |
500W |
| Machine Weight |
150KG |
| Maximum Bearing Weight |
60KG |
| Input Power |
Single-phase AC 220V/50Hz |
| Dimensions |
L1370*W830*H1870mm |

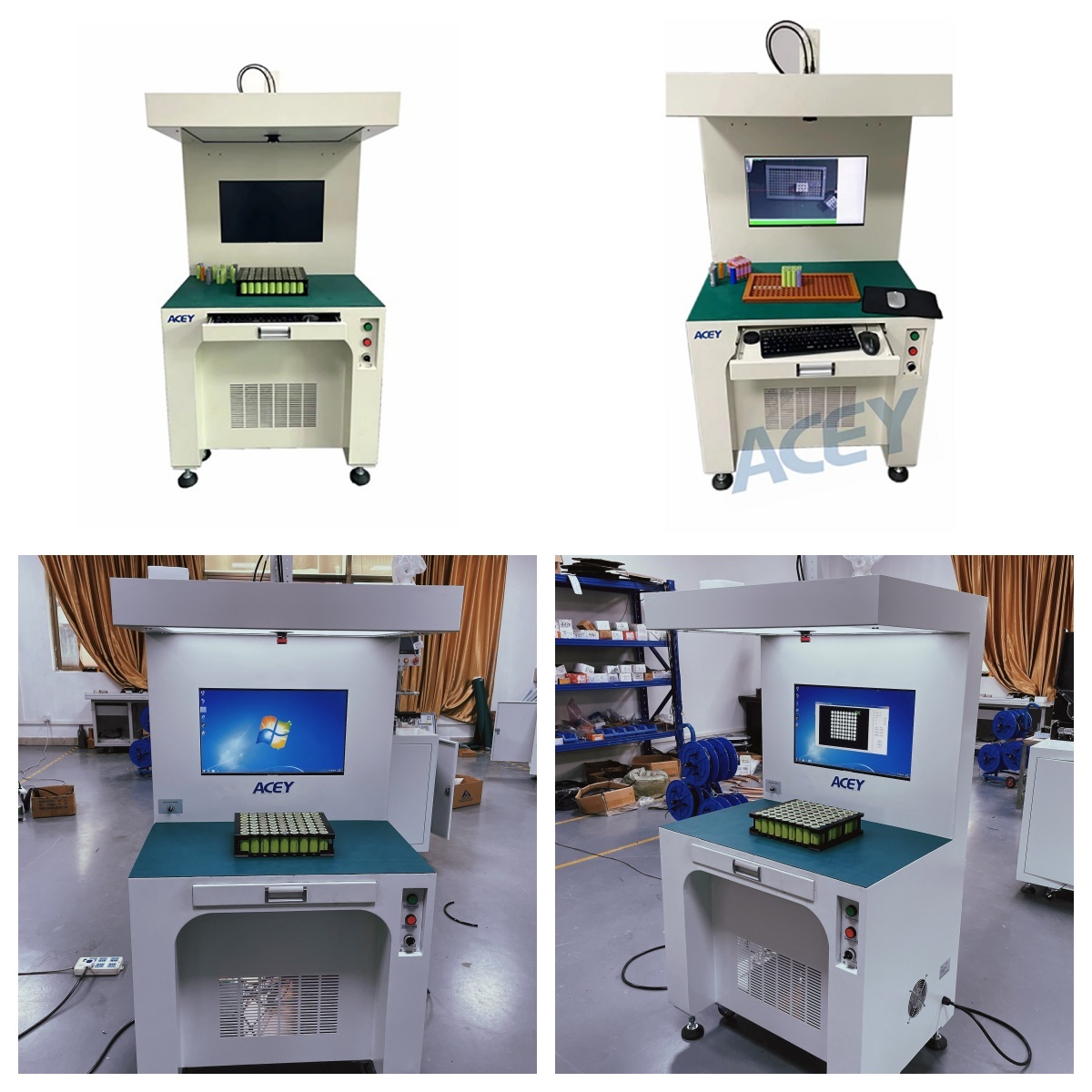

Product Display
Frequently Asked Questions
What batteries can this CCD inspection machine detect?
It supports cylindrical lithium battery cells including 14500, 18650, 21700, 26650, 32700 and other customized sizes.
What does the CCD system inspect?
The system automatically detects battery polarity, terminal orientation and placement before spot welding.
Can the machine reject defective batteries automatically?
Yes. NG batteries can be marked, stopped or automatically rejected according to production requirements.
Can it be integrated with a battery pack production line?
Yes. The machine is designed for automatic battery pack assembly lines.
What camera does the machine use?
It uses an industrial CCD vision camera with intelligent image processing software.
